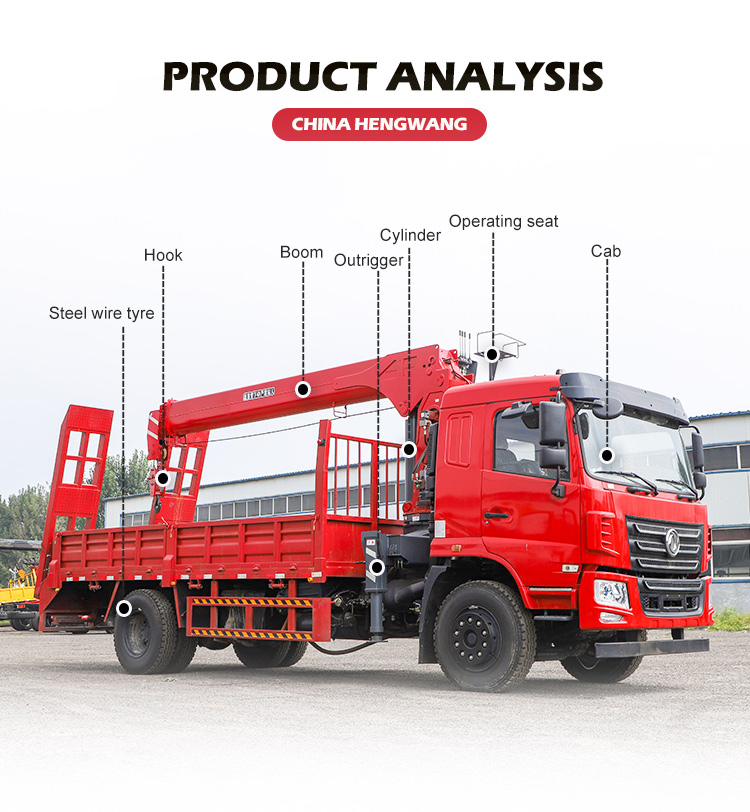

Product Description Product Description Our Truck mounted cranes, articulating/knuckleboom cranes and hydraulic Loaders help you accomplish more on your job sites.Whether your crane truck will be working on a construction site, in a mine, moving materials, assisting with utility maintenance,handling tires or transporting heavy equipment, our Truck Mounted Crane team can specify and customize a truck to successfully accomplish the unique challenges you face. Specification

Configuration	The new F5 cab, Yuchai 180 horsepower, Fast 8-speed, 5 tons front axle, 10 tons rear axle,300 through beam, 1000-20 steel tire, original air conditioner, airbag seat, remote control, driving recorder, cruise control,multi-function steering wheel
Model	HW-8T	Span (mm)	4800/5500/5700
Choose chassis	Dongfeng	Engine model	YC6JA180-50
Emission Standards	National V	Engine power	132KW
Maximum lifting weight T	8	Tyre model	10.00R20
Boom M	14.5	Wheelbase (mm)	5100
Basic arm length M	4.5	Dimensions (mm)	9000*2400*3850
Maximum lifting height M	17.3	Internal dimensions of cargo box (mm)	5600*2300*550
Number of boom sections	4	Total weight (kg)	18000
Maximum elevation angle	80°	Rated load weight (kg)	5755
turn around angle	0-360	Curb weight (kg)	12050
Swing speed	0-3	Top speed (km/h)	90
Hydraulic outrigger	automatic	Out arm way	Cylinder + rod rope
Big frame	Three layers	Steering method	Hydraulic boost

Product Detail Packing & Delivery Other Best sell products Recommended by sellerTop quality new design HW 3.5.0t hydraulic truck mounted crane for sale.$19,000.00 - $20,000.00 / Set1 SetTop quality new design HW 12.0t hydraulic Truck Crane for sale.$26,000.00 - $26,800.00 / Set1 SetCheap Backhoe Loader factory direct sales Tractor with Towable backhoe wheel 4wd backhoe Loader $9,500.00 - $17,640.00 / Set1 SetBest sell!China new-type brand new wheel excavators.Hot sale.$26,500.00 - $31,000.00 / Set1.0 SetsLOW PRICE!!!Best Seller Self Loading Concrete Mixer 7.5 ton Truck.$22,550.00 / Set1 SetMini Excavator 0.7 ton Mini Excavator /HW digger excavator for sale$4,100.00 / Set1 Set Company Profile FAQ Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Contact us if you need more details on Cranes Hydraulic. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Crane Truck、Cranes. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Truck Crane > Truck with Crane
