Product Description Product DescriptionHW-Hydraulic DRILLING RIG!!!!    HWseries hydraulic drilling rig is a kid of widely used portable drill machine. It is uitbale for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservanc, bridges, dam foundation and other buildings. According to different strata, it drills by choosing different bits, such as, diamond composite films and alloy.Main features1.It improves drilling efficiency and reduces labor intensity with hydraulic automatic feeding mechanism.2.It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism or hydraulic chuck.3.It has hole bottom pressure gauge to be easy tp master the situation in the hole.4.It also has advantage of compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy to move.It can be operated in plains and mountain areas.Parameter

Model	HW-160/190/230	Spindle Speed	64~1045(r/min)
Max.Drilling depth	160m/190m/230m	Spindle Stroke	450mm
Soil Open hole dia.	500mm/500mm/500mm	Winch single rope lift force	2000kg-2500kg
Rock  Open hole dia.	220mm/220mm/273mm	Winch single rope lift speed	0.12-1.64(m/s)
End hole dia.	75mm~200mm	Winch Rope dia.	9.3mm/9.3mm/12..5mm
Drill rod dia.	42/50/60	Winch Rope capacity	27M/27M/35M
Drill angle	90-75°	Drill Mast Rated load	18T
Engine Power	13/14/16KW	Drill Mast Effective height	6.5M
Weight	600KG/650KG/880KG	Mud Pump Flow	95~145L/min
Dimension	2.7*0.9*1.5	Mud pump Max.pressure	1.2~2Mpa
		Mud pump reciprocations time	93 times/min
		Inlet hose dia.(mm)	51mm
		Outlet hose dia.(mm)	32mm

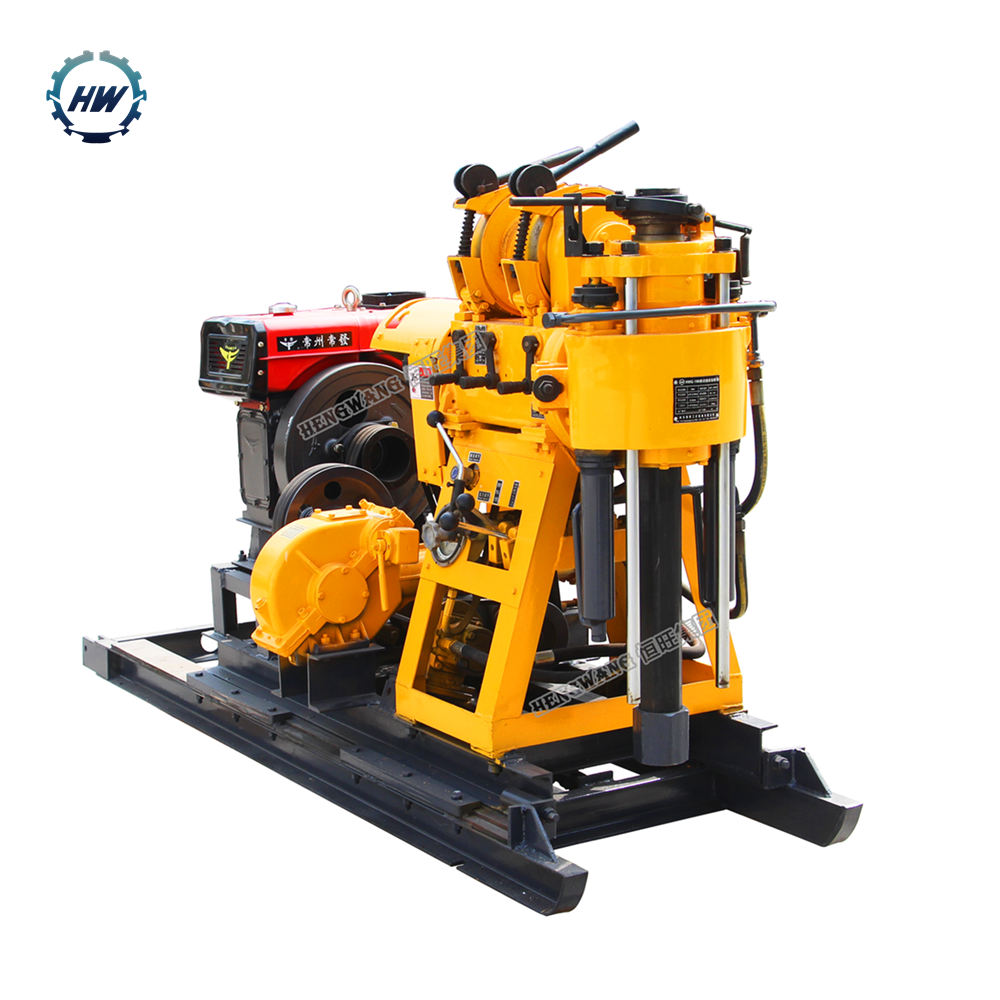

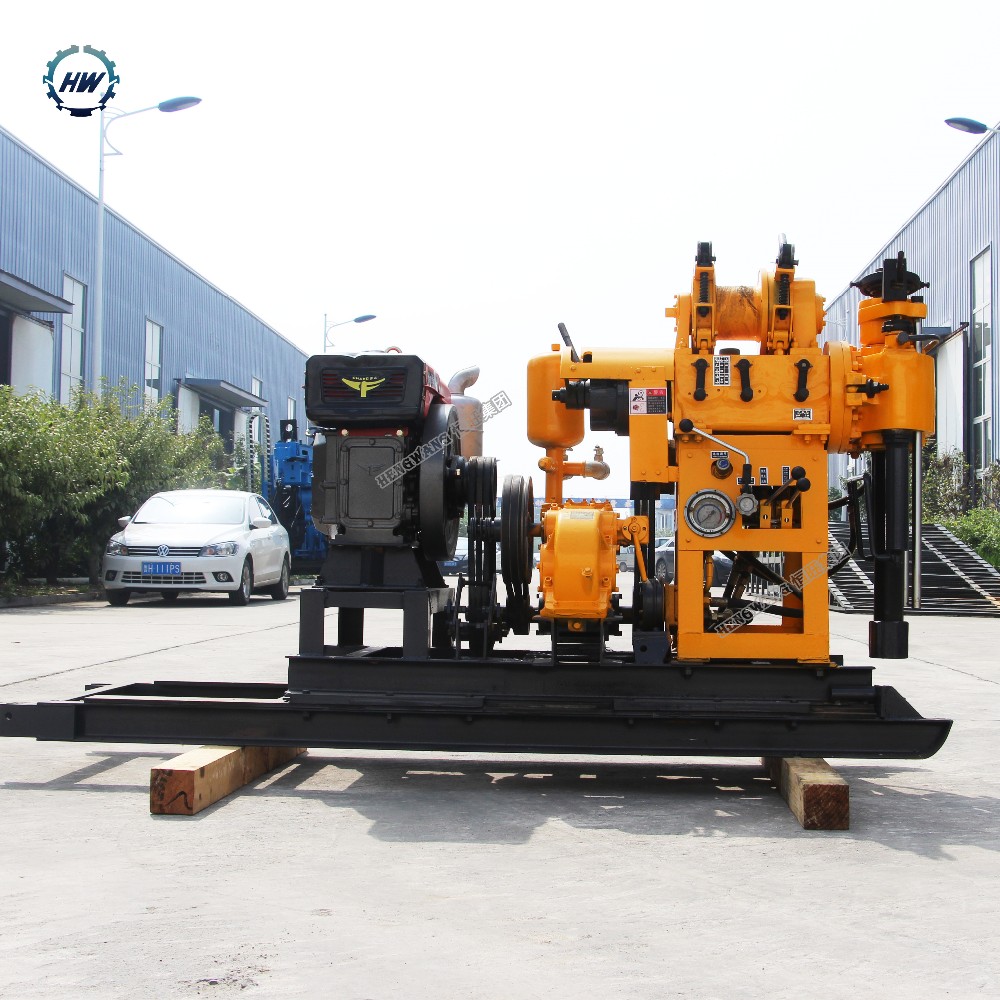

Detailed ImagesHW-160/190/2301 set include all accessories will be used.(Please contact us for Details)

.

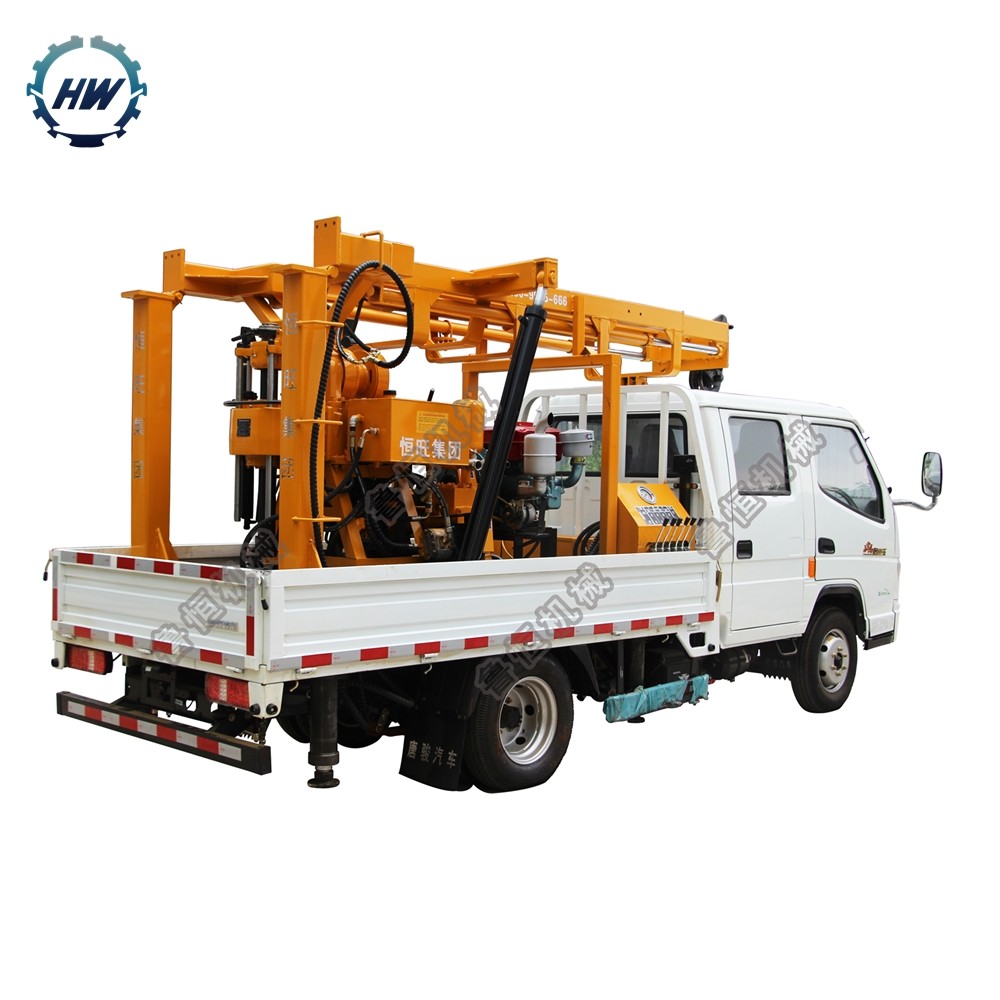

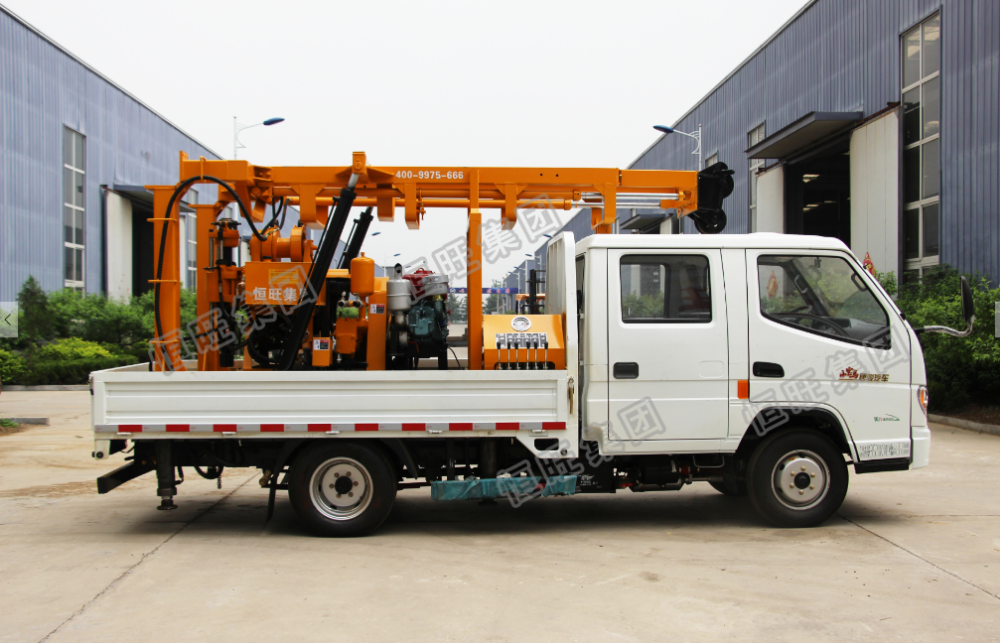

HW-160T/190T/230T1 set include all accessories will be used.
(Please contact us for list)

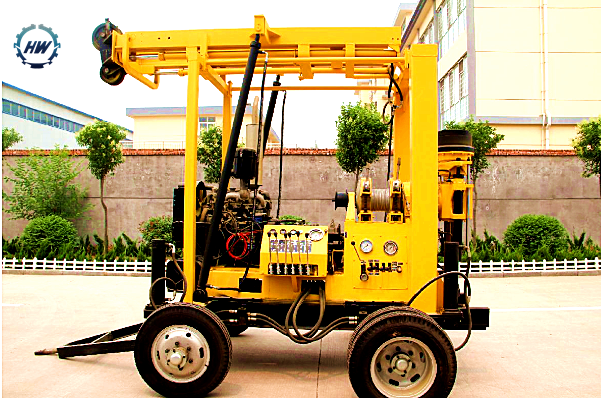

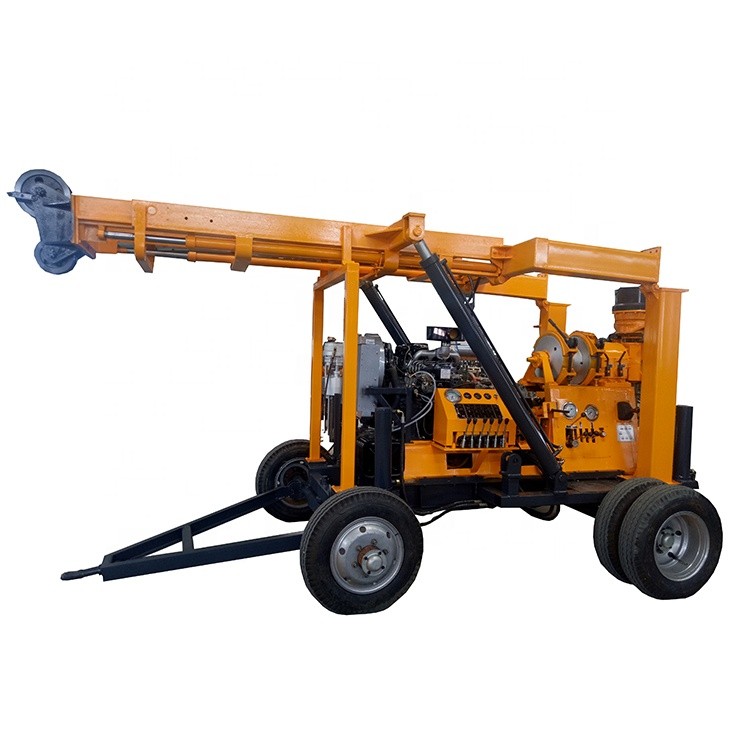

HW-160L/190L/230L
1 set include all accessories will be used.(Please contact us for Details)

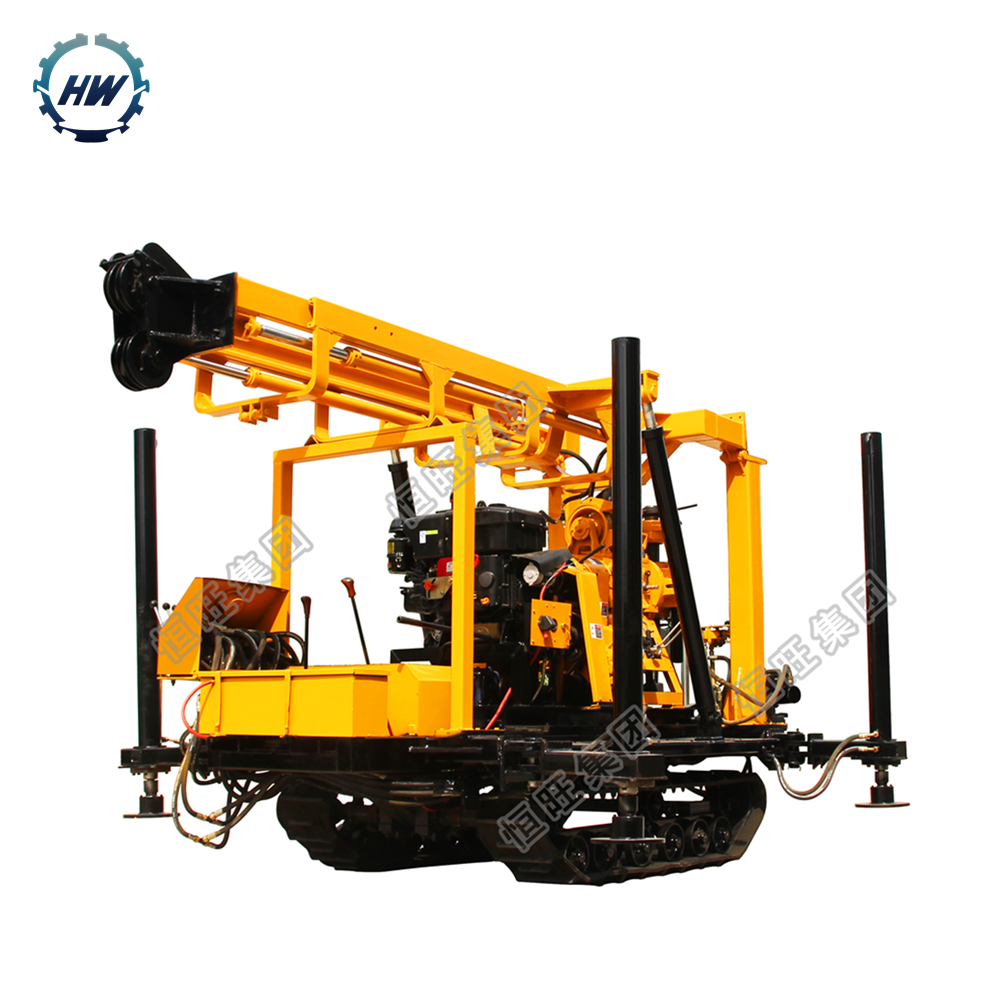

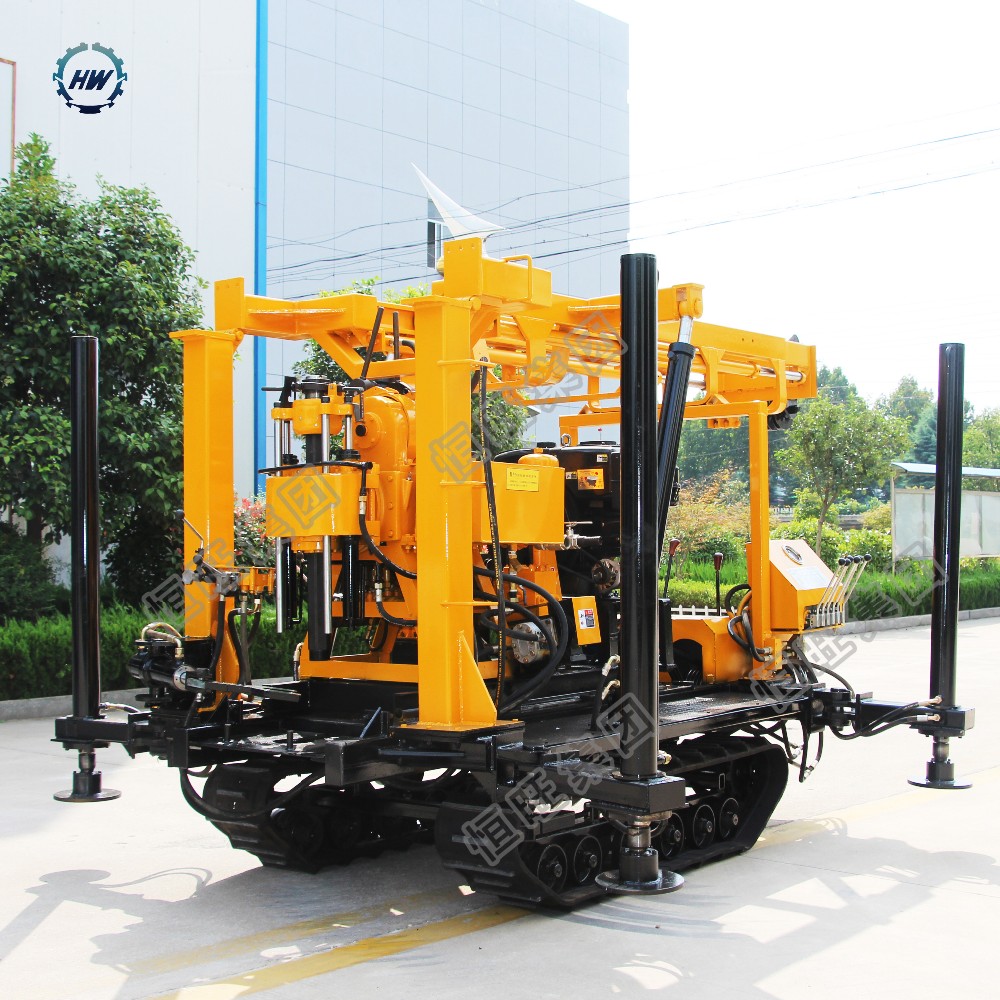

HW-160C/190C/230C
1 set include all accessories will be used.(Please contact us for Details)

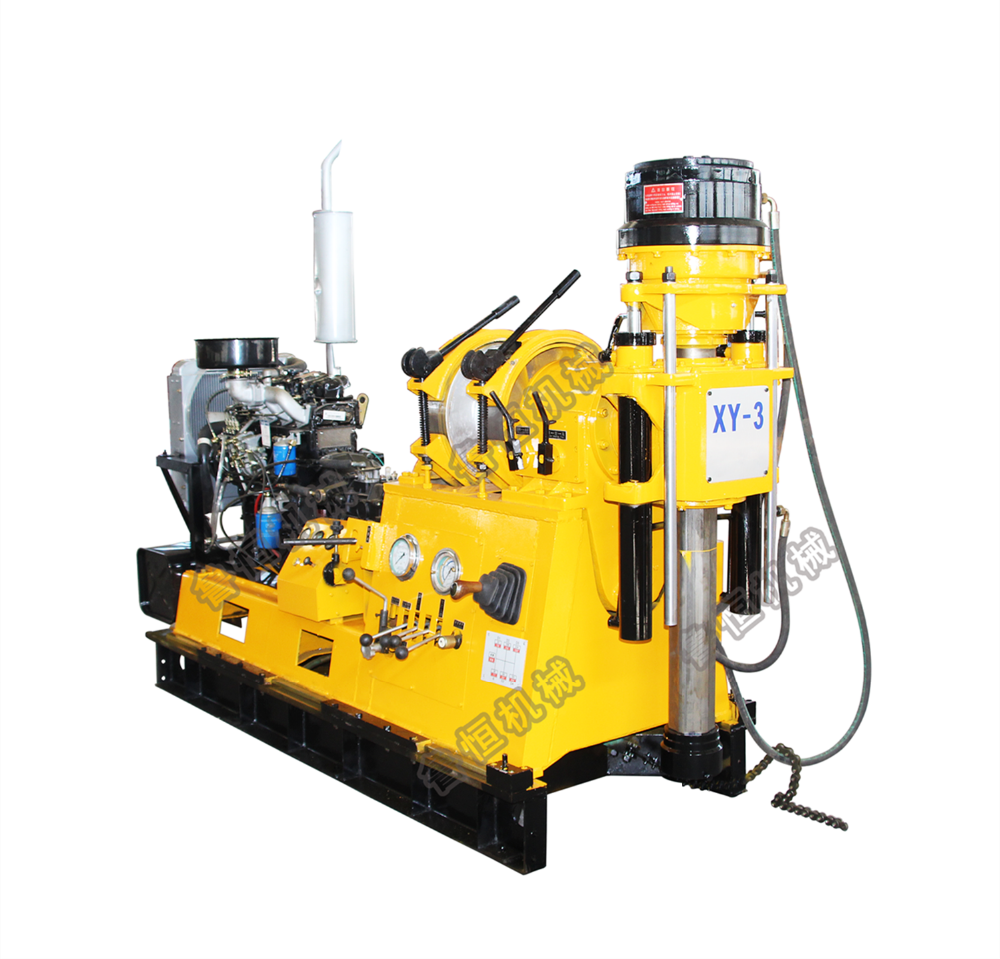

Related ProductsHW XY-3Hydraulic Drilling rig
Max.drilling depth:600m

HW XY-44A
Hydraulic Drilling rig
Max.drilling depth:1400m

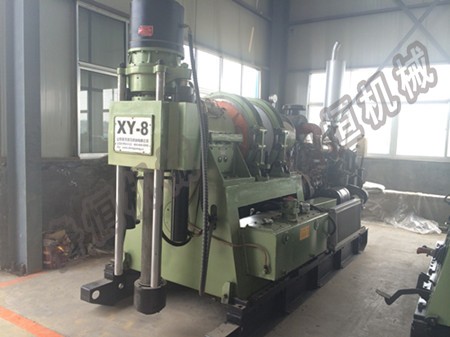

HW XY-8Hydraulic Drilling rig
Max.drilling depth:3000m

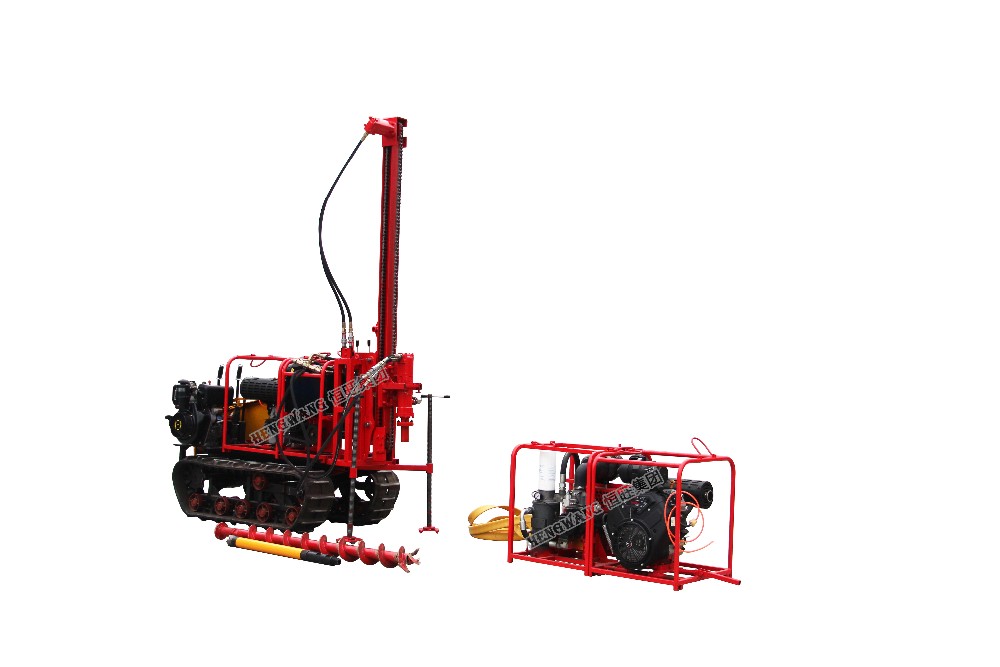

HW-S30Pneumatic Drilling rig
Max.drilling depth:50m
Including Air Compressor for choice
HQZ150/180/260/300/400/500Pneumatic Drilling rig
Max.drilling depth:
150M/180M/26M0/300M/400M/500M
Including Air Compressor for choice

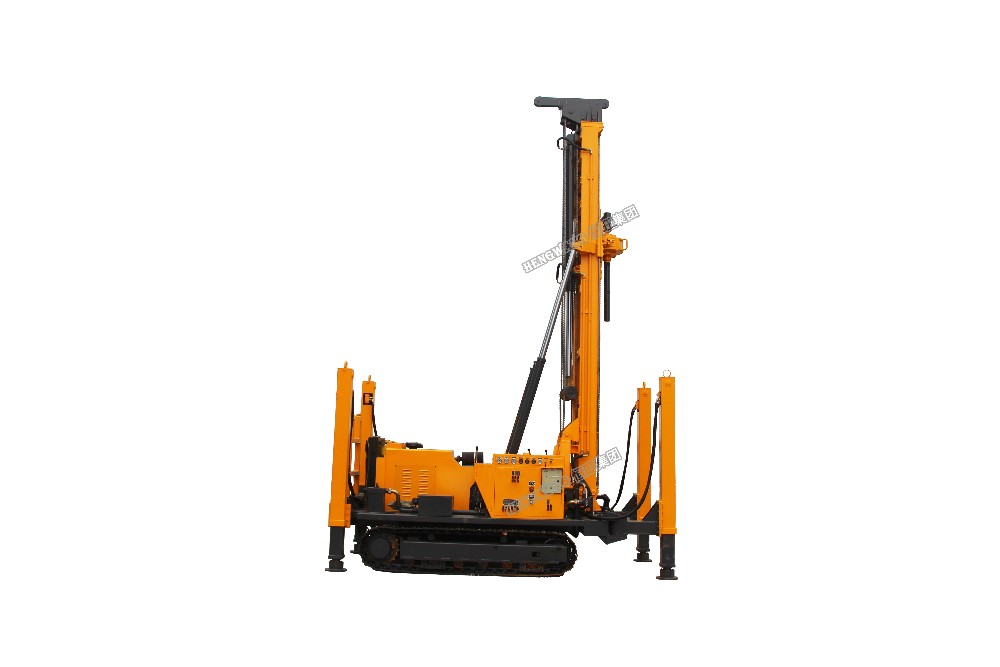

HWL-260L/300L/400L Water/air Drilling RigHydraulic/Pneumatic Drilling rig
Max.drilling depth:260m/300m/400m
